An Introduction to Social Network Analysis (SNA) in R

class: center, middle, inverse, title-slide

# An Introduction to Social Network Analysis (SNA) in R
## CORE Lab
### Department of Defense Analysis
### 2019-08-08

---

# Introduction

* Purpose

* Scope

* SNA in R

---

# What are social networks?

* We emphasize the *social* in social networks.

--

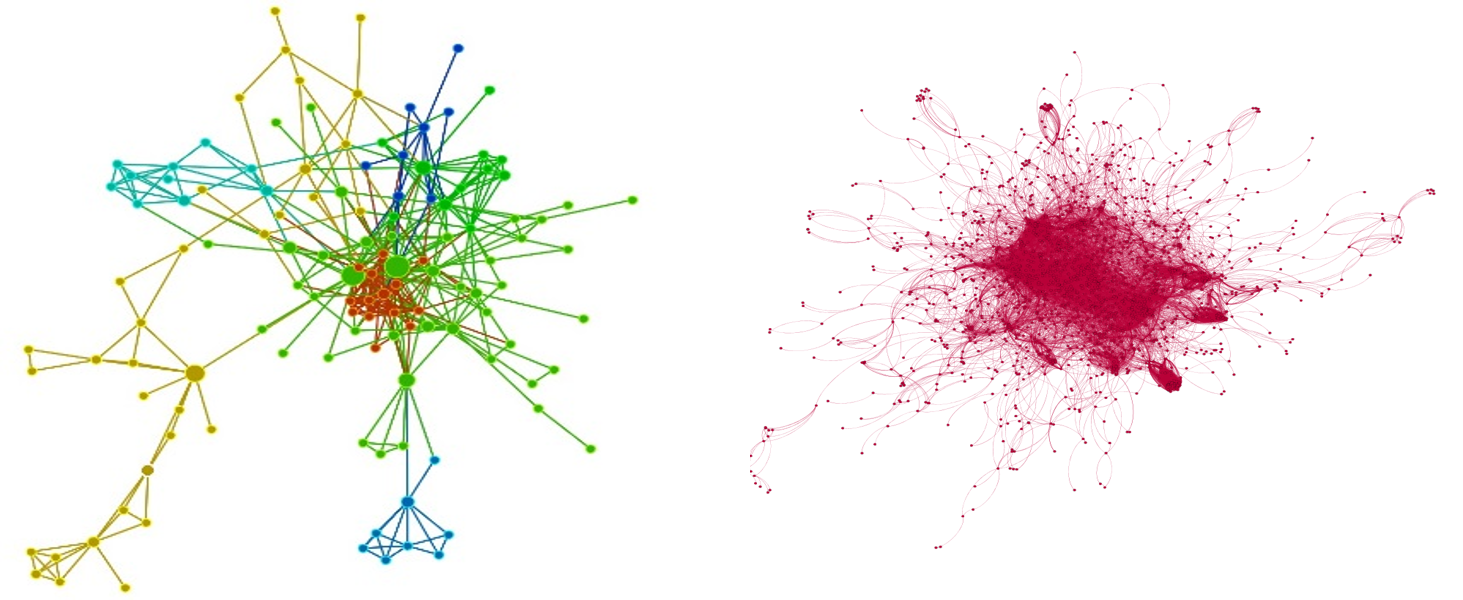

* Online and offline social networks

.center[
![](online_offline.png)]

---

# What is social network analysis?

* SNA is a set of theories and techniques used to understand social structures.

* We use SNA to identify strengths and vulnerabilities in social networks.

---

# Social Network Example

* Person A is a member of Gang X and lives in Neighborhood 1. He has admittedly sold drugs to two individuals who reside in Neighborhood 1, Person D (male) and Person E (female). Person A is the brother of Person C and has two sisters, Actors F and G (both live in Neighborhood 2). Person A was arrested in the past with Person H (a close friend of B) and Person I.

* Person B's affiliation is unknown and he lives in Neighborhood 3. Person B communicates with Persons F, G, and J.  She is a friend of Person C, Person J (Gang X), and  Person L.  She lied to police about Person C's whereabouts on the night of a shooting last year. Person B hangs out with F, who knows L and N.

* Person C is also a member of Gang X and lives in Neighborhood 2.Person H (Neighborhood 2), looks up to Person C.  Person C's close friend, Person I (Neighborhood 2), is dating Person G and Person C communicates with Person J (Neighborhood 3).

* Person D is a member of Gang Y and lives in Neighborhood 1.Person D regularly communicates with Person K ( member of Gang Z) and Person L.

* Person E's affiliation is unknown. She is a close friend of Person K (Neighborhood 1) and is suspected of being a drug dealer.  She dated Person K and Person A, and she hangs out with Person L (affiliation unknown) and Person M (affiliation unknown) from Neighborhood 1.

---

# Social Network Example

<div id="htmlwidget-c4c76e935f95f258a9b5" style="width:100%;height:504px;" class="visNetwork html-widget"></div>
<script type="application/json" data-for="htmlwidget-c4c76e935f95f258a9b5">{"x":{"nodes":{"id":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"],"age":[23,19,24,22,22,20,null,null,null,25,null,null,null,19],"gender":["Male","Female","Male","Male","Female","Female","Female","Male","Female","Male","Male","Female","Male","Male"],"membership":["Gang X","Unknown","Gang X","Gang Y","Unknown","Unknown","Unknown","Unknown","Unknown","Gang X ","Gang Z","Unknown","Unknown","Gang Y"],"record":["Yes","No","Yes","Yes","Yes","Yes","Yes","","","","","","",""],"location":["Neighborhood 1","Neighborhood 3","Neighborhood 2","Neighborhood 1","Neighborhood 1","Neighborhood 2","Neighborhood 2","Neighborhood 2","Neighborhood 2","Neighborhood 3","Neighborhood 1","Neighborhood 1","Neighborhood 1","Neighborhood 2"],"lat":[36.76407,36.770279,36.759774,36.761413,36.760613,36.761812,36.759573,36.756701,36.758281,36.764908,36.75942,36.757799,36.75493,36.759238],"lng":[-121.744391,-121.751692,-121.752391,-121.740625,-121.740741,-121.750777,-121.748768,-121.7476,-121.745083,-121.756012,-121.742536,-121.739152,-121.741683,-121.750983],"betweenness":[23.3,8.53,16.88,9.54,11.48,1.7,0,0,5.79,0,9.2,1.07,0,0.53],"title":["Name: <\/b> Actor A Age: <\/b> 23 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 1 Brokerage: <\/b> 23.3 ","Name: <\/b> Actor B Age: <\/b> 19 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 3 Brokerage: <\/b> 8.53 ","Name: <\/b> Actor C Age: <\/b> 24 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 2 Brokerage: <\/b> 16.88 ","Name: <\/b> Actor D Age: <\/b> 22 Gender: <\/b> Male Gang: <\/b> Gang Y Location: <\/b> Neighborhood 1 Brokerage: <\/b> 9.54 ","Name: <\/b> Actor E Age: <\/b> 22 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 11.48 ","Name: <\/b> Actor F Age: <\/b> 20 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 1.7 ","Name: <\/b> Actor G Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0 ","Name: <\/b> Actor H Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0 ","Name: <\/b> Actor I Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 5.79 ","Name: <\/b> Actor J Age: <\/b> 25 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 3 Brokerage: <\/b> 0 ","Name: <\/b> Actor K Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Gang Z Location: <\/b> Neighborhood 1 Brokerage: <\/b> 9.2 ","Name: <\/b> Actor L Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 1.07 ","Name: <\/b> Actor M Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 0 ","Name: <\/b> Actor N Age: <\/b> 19 Gender: <\/b> Male Gang: <\/b> Gang Y Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0.53 "],"label":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"]},"edges":{"from":["Actor D","Actor B","Actor C","Actor D","Actor D","Actor A","Actor A","Actor A","Actor B","Actor B","Actor C","Actor E","Actor E","Actor F","Actor F","Actor I","Actor F","Actor A","Actor A","Actor C","Actor C","Actor F","Actor C","Actor A","Actor A","Actor B","Actor B","Actor E"],"to":["Actor N","Actor G","Actor J","Actor K","Actor L","Actor H","Actor I","Actor D","Actor C","Actor L","Actor I","Actor L","Actor M","Actor L","Actor N","Actor G","Actor H","Actor F","Actor G","Actor F","Actor G","Actor G","Actor H","Actor E","Actor C","Actor F","Actor J","Actor K"],"relationship":["Co-Membership","Communication","Communication","Communication","Communication","Criminal","Criminal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Multiple","Multiple","Multiple","Multiple","Multiple"]},"nodesToDataframe":true,"edgesToDataframe":true,"options":{"width":"100%","height":"100%","nodes":{"shape":"dot"},"manipulation":{"enabled":false},"edges":{"smooth":false},"physics":{"solver":"forceAtlas2Based","stabilization":false,"enabled":true},"interaction":{"hover":true,"dragNodes":true,"dragView":true,"keyboard":true,"navigationButtons":true,"zoomView":true}},"groups":null,"width":"100%","height":null,"idselection":{"enabled":false,"style":"width: 150px; height: 26px","useLabels":true,"main":"Select by id"},"byselection":{"enabled":true,"style":"width: 150px; height: 26px","multiple":false,"hideColor":"rgba(200,200,200,0.5)","variable":"id","main":"Select by id","values":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"]},"main":{"text":"Example Social Network","style":"font-family:Georgia, Times New Roman, Times, serif;font-weight:bold;font-size:20px;text-align:center;"},"submain":null,"footer":null,"background":"rgba(0, 0, 0, 0)","highlight":{"enabled":true,"hoverNearest":true,"degree":2,"algorithm":"all","hideColor":"rgba(200,200,200,0.5)","labelOnly":true},"collapse":{"enabled":false,"fit":false,"resetHighlight":true,"clusterOptions":null,"keepCoord":true,"labelSuffix":"(cluster)"},"tooltipStay":300,"tooltipStyle":"position: fixed;visibility:hidden;padding: 5px;white-space: nowrap;font-family: verdana;font-size:14px;font-color:#000000;background-color: #f5f4ed;-moz-border-radius: 3px;-webkit-border-radius: 3px;border-radius: 3px;border: 1px solid #808074;box-shadow: 3px 3px 10px rgba(0, 0, 0, 0.2);"},"evals":[],"jsHooks":[]}</script>

---

# Social Network Example

<div id="htmlwidget-c820ca1e10efbbd55f7b" style="width:100%;height:504px;" class="visNetwork html-widget"></div>
<script type="application/json" data-for="htmlwidget-c820ca1e10efbbd55f7b">{"x":{"nodes":{"id":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"],"age":[23,19,24,22,22,20,null,null,null,25,null,null,null,19],"gender":["Male","Female","Male","Male","Female","Female","Female","Male","Female","Male","Male","Female","Male","Male"],"membership":["Gang X","Unknown","Gang X","Gang Y","Unknown","Unknown","Unknown","Unknown","Unknown","Gang X ","Gang Z","Unknown","Unknown","Gang Y"],"record":["Yes","No","Yes","Yes","Yes","Yes","Yes","","","","","","",""],"location":["Neighborhood 1","Neighborhood 3","Neighborhood 2","Neighborhood 1","Neighborhood 1","Neighborhood 2","Neighborhood 2","Neighborhood 2","Neighborhood 2","Neighborhood 3","Neighborhood 1","Neighborhood 1","Neighborhood 1","Neighborhood 2"],"lat":[36.76407,36.770279,36.759774,36.761413,36.760613,36.761812,36.759573,36.756701,36.758281,36.764908,36.75942,36.757799,36.75493,36.759238],"lng":[-121.744391,-121.751692,-121.752391,-121.740625,-121.740741,-121.750777,-121.748768,-121.7476,-121.745083,-121.756012,-121.742536,-121.739152,-121.741683,-121.750983],"betweenness":[23.3,8.53,16.88,9.54,11.48,1.7,0,0,5.79,0,9.2,1.07,0,0.53],"title":["Name: <\/b> Actor A Age: <\/b> 23 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 1 Brokerage: <\/b> 23.3 ","Name: <\/b> Actor B Age: <\/b> 19 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 3 Brokerage: <\/b> 8.53 ","Name: <\/b> Actor C Age: <\/b> 24 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 2 Brokerage: <\/b> 16.88 ","Name: <\/b> Actor D Age: <\/b> 22 Gender: <\/b> Male Gang: <\/b> Gang Y Location: <\/b> Neighborhood 1 Brokerage: <\/b> 9.54 ","Name: <\/b> Actor E Age: <\/b> 22 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 11.48 ","Name: <\/b> Actor F Age: <\/b> 20 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 1.7 ","Name: <\/b> Actor G Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0 ","Name: <\/b> Actor H Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0 ","Name: <\/b> Actor I Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 5.79 ","Name: <\/b> Actor J Age: <\/b> 25 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 3 Brokerage: <\/b> 0 ","Name: <\/b> Actor K Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Gang Z Location: <\/b> Neighborhood 1 Brokerage: <\/b> 9.2 ","Name: <\/b> Actor L Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 1.07 ","Name: <\/b> Actor M Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 0 ","Name: <\/b> Actor N Age: <\/b> 19 Gender: <\/b> Male Gang: <\/b> Gang Y Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0.53 "],"label":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"]},"edges":{"from":["Actor D","Actor B","Actor C","Actor D","Actor D","Actor A","Actor A","Actor A","Actor B","Actor B","Actor C","Actor E","Actor E","Actor F","Actor F","Actor I","Actor F","Actor A","Actor A","Actor C","Actor C","Actor F","Actor C","Actor A","Actor A","Actor B","Actor B","Actor E"],"to":["Actor N","Actor G","Actor J","Actor K","Actor L","Actor H","Actor I","Actor D","Actor C","Actor L","Actor I","Actor L","Actor M","Actor L","Actor N","Actor G","Actor H","Actor F","Actor G","Actor F","Actor G","Actor G","Actor H","Actor E","Actor C","Actor F","Actor J","Actor K"],"relationship":["Co-Membership","Communication","Communication","Communication","Communication","Criminal","Criminal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Multiple","Multiple","Multiple","Multiple","Multiple"],"color":["#e41a1c","#377eb8","#377eb8","#377eb8","#377eb8","#4daf4a","#4daf4a","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#984ea3","#ff7f00","#ff7f00","#ff7f00","#ff7f00","#ff7f00"]},"nodesToDataframe":true,"edgesToDataframe":true,"options":{"width":"100%","height":"100%","nodes":{"shape":"dot"},"manipulation":{"enabled":false},"edges":{"width":8,"smooth":false},"physics":{"solver":"forceAtlas2Based","stabilization":false,"enabled":true},"interaction":{"hover":true,"dragNodes":true,"dragView":true,"keyboard":true,"navigationButtons":true,"zoomView":true}},"groups":null,"width":"100%","height":null,"idselection":{"enabled":false,"style":"width: 150px; height: 26px","useLabels":true,"main":"Select by id"},"byselection":{"enabled":true,"style":"width: 150px; height: 26px","multiple":false,"hideColor":"rgba(200,200,200,0.5)","variable":"id","main":"Select by id","values":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"]},"main":{"text":"Example Social Network (By Relationship Type)","style":"font-family:Georgia, Times New Roman, Times, serif;font-weight:bold;font-size:20px;text-align:center;"},"submain":null,"footer":null,"background":"rgba(0, 0, 0, 0)","legend":{"width":0.2,"useGroups":true,"position":"left","ncol":1,"stepX":100,"stepY":100,"zoom":true,"edges":{"color":["#e41a1c","#377eb8","#4daf4a","#984ea3","#ff7f00"],"label":["Co-Mem","Comms","Criminal","Personal","Multiple"]},"edgesToDataframe":true},"highlight":{"enabled":true,"hoverNearest":true,"degree":2,"algorithm":"all","hideColor":"rgba(200,200,200,0.5)","labelOnly":true},"collapse":{"enabled":false,"fit":false,"resetHighlight":true,"clusterOptions":null,"keepCoord":true,"labelSuffix":"(cluster)"},"tooltipStay":300,"tooltipStyle":"position: fixed;visibility:hidden;padding: 5px;white-space: nowrap;font-family: verdana;font-size:14px;font-color:#000000;background-color: #f5f4ed;-moz-border-radius: 3px;-webkit-border-radius: 3px;border-radius: 3px;border: 1px solid #808074;box-shadow: 3px 3px 10px rgba(0, 0, 0, 0.2);"},"evals":[],"jsHooks":[]}</script>

---

# Social Network Example

<div id="htmlwidget-e47720c8110a688f48ec" style="width:100%;height:504px;" class="visNetwork html-widget"></div>
<script type="application/json" data-for="htmlwidget-e47720c8110a688f48ec">{"x":{"nodes":{"id":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"],"age":[23,19,24,22,22,20,null,null,null,25,null,null,null,19],"gender":["Male","Female","Male","Male","Female","Female","Female","Male","Female","Male","Male","Female","Male","Male"],"membership":["Gang X","Unknown","Gang X","Gang Y","Unknown","Unknown","Unknown","Unknown","Unknown","Gang X ","Gang Z","Unknown","Unknown","Gang Y"],"record":["Yes","No","Yes","Yes","Yes","Yes","Yes","","","","","","",""],"location":["Neighborhood 1","Neighborhood 3","Neighborhood 2","Neighborhood 1","Neighborhood 1","Neighborhood 2","Neighborhood 2","Neighborhood 2","Neighborhood 2","Neighborhood 3","Neighborhood 1","Neighborhood 1","Neighborhood 1","Neighborhood 2"],"lat":[36.76407,36.770279,36.759774,36.761413,36.760613,36.761812,36.759573,36.756701,36.758281,36.764908,36.75942,36.757799,36.75493,36.759238],"lng":[-121.744391,-121.751692,-121.752391,-121.740625,-121.740741,-121.750777,-121.748768,-121.7476,-121.745083,-121.756012,-121.742536,-121.739152,-121.741683,-121.750983],"betweenness":[23.3,8.53,16.88,9.54,11.48,1.7,0,0,5.79,0,9.2,1.07,0,0.53],"color":["#7fc97f",null,"#7fc97f",null,null,null,null,null,null,null,null,null,null,null],"size":[34.95,12.795,25.32,14.31,17.22,2.55,0,0,8.685,0,13.8,1.605,0,0.795],"title":["Name: <\/b> Actor A Age: <\/b> 23 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 1 Brokerage: <\/b> 23.3 ","Name: <\/b> Actor B Age: <\/b> 19 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 3 Brokerage: <\/b> 8.53 ","Name: <\/b> Actor C Age: <\/b> 24 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 2 Brokerage: <\/b> 16.88 ","Name: <\/b> Actor D Age: <\/b> 22 Gender: <\/b> Male Gang: <\/b> Gang Y Location: <\/b> Neighborhood 1 Brokerage: <\/b> 9.54 ","Name: <\/b> Actor E Age: <\/b> 22 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 11.48 ","Name: <\/b> Actor F Age: <\/b> 20 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 1.7 ","Name: <\/b> Actor G Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0 ","Name: <\/b> Actor H Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0 ","Name: <\/b> Actor I Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 5.79 ","Name: <\/b> Actor J Age: <\/b> 25 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 3 Brokerage: <\/b> 0 ","Name: <\/b> Actor K Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Gang Z Location: <\/b> Neighborhood 1 Brokerage: <\/b> 9.2 ","Name: <\/b> Actor L Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 1.07 ","Name: <\/b> Actor M Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 0 ","Name: <\/b> Actor N Age: <\/b> 19 Gender: <\/b> Male Gang: <\/b> Gang Y Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0.53 "],"label":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"]},"edges":{"from":["Actor D","Actor B","Actor C","Actor D","Actor D","Actor A","Actor A","Actor A","Actor B","Actor B","Actor C","Actor E","Actor E","Actor F","Actor F","Actor I","Actor F","Actor A","Actor A","Actor C","Actor C","Actor F","Actor C","Actor A","Actor A","Actor B","Actor B","Actor E"],"to":["Actor N","Actor G","Actor J","Actor K","Actor L","Actor H","Actor I","Actor D","Actor C","Actor L","Actor I","Actor L","Actor M","Actor L","Actor N","Actor G","Actor H","Actor F","Actor G","Actor F","Actor G","Actor G","Actor H","Actor E","Actor C","Actor F","Actor J","Actor K"],"relationship":["Co-Membership","Communication","Communication","Communication","Communication","Criminal","Criminal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Multiple","Multiple","Multiple","Multiple","Multiple"],"color":["grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey"]},"nodesToDataframe":true,"edgesToDataframe":true,"options":{"width":"100%","height":"100%","nodes":{"shape":"dot"},"manipulation":{"enabled":false},"edges":{"smooth":false},"physics":{"solver":"forceAtlas2Based","stabilization":false,"enabled":true},"interaction":{"hover":true,"dragNodes":true,"dragView":true,"keyboard":true,"navigationButtons":true,"zoomView":true}},"groups":null,"width":"100%","height":null,"idselection":{"enabled":false,"style":"width: 150px; height: 26px","useLabels":true,"main":"Select by id"},"byselection":{"enabled":true,"style":"width: 150px; height: 26px","multiple":false,"hideColor":"rgba(200,200,200,0.5)","variable":"id","main":"Select by id","values":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"]},"main":{"text":"Example Social Network (By Gang)","style":"font-family:Georgia, Times New Roman, Times, serif;font-weight:bold;font-size:20px;text-align:center;"},"submain":null,"footer":{"text":"Size = Brokerage","style":"font-family:Georgia, Times New Roman, Times, serif;font-size:12px;text-align:center;"},"background":"rgba(0, 0, 0, 0)","highlight":{"enabled":true,"hoverNearest":true,"degree":2,"algorithm":"all","hideColor":"rgba(200,200,200,0.5)","labelOnly":true},"collapse":{"enabled":false,"fit":false,"resetHighlight":true,"clusterOptions":null,"keepCoord":true,"labelSuffix":"(cluster)"},"tooltipStay":300,"tooltipStyle":"position: fixed;visibility:hidden;padding: 5px;white-space: nowrap;font-family: verdana;font-size:14px;font-color:#000000;background-color: #f5f4ed;-moz-border-radius: 3px;-webkit-border-radius: 3px;border-radius: 3px;border: 1px solid #808074;box-shadow: 3px 3px 10px rgba(0, 0, 0, 0.2);"},"evals":[],"jsHooks":[]}</script>

---

# Social Network Example

<div id="htmlwidget-363802e1ffa71d50bf74" style="width:100%;height:504px;" class="visNetwork html-widget"></div>
<script type="application/json" data-for="htmlwidget-363802e1ffa71d50bf74">{"x":{"nodes":{"id":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"],"age":[23,19,24,22,22,20,null,null,null,25,null,null,null,19],"gender":["Male","Female","Male","Male","Female","Female","Female","Male","Female","Male","Male","Female","Male","Male"],"membership":["Gang X","Unknown","Gang X","Gang Y","Unknown","Unknown","Unknown","Unknown","Unknown","Gang X ","Gang Z","Unknown","Unknown","Gang Y"],"record":["Yes","No","Yes","Yes","Yes","Yes","Yes","","","","","","",""],"location":["Neighborhood 1","Neighborhood 3","Neighborhood 2","Neighborhood 1","Neighborhood 1","Neighborhood 2","Neighborhood 2","Neighborhood 2","Neighborhood 2","Neighborhood 3","Neighborhood 1","Neighborhood 1","Neighborhood 1","Neighborhood 2"],"lat":[36.76407,36.770279,36.759774,36.761413,36.760613,36.761812,36.759573,36.756701,36.758281,36.764908,36.75942,36.757799,36.75493,36.759238],"lng":[-121.744391,-121.751692,-121.752391,-121.740625,-121.740741,-121.750777,-121.748768,-121.7476,-121.745083,-121.756012,-121.742536,-121.739152,-121.741683,-121.750983],"betweenness":[23.3,8.53,16.88,9.54,11.48,1.7,0,0,5.79,0,9.2,1.07,0,0.53],"color":["#f0027f","#666666","#bf5b17","#f0027f","#f0027f","#bf5b17","#bf5b17","#bf5b17","#bf5b17","#666666","#f0027f","#f0027f","#f0027f","#bf5b17"],"size":[34.95,12.795,25.32,14.31,17.22,2.55,0,0,8.685,0,13.8,1.605,0,0.795],"title":["Name: <\/b> Actor A Age: <\/b> 23 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 1 Brokerage: <\/b> 23.3 ","Name: <\/b> Actor B Age: <\/b> 19 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 3 Brokerage: <\/b> 8.53 ","Name: <\/b> Actor C Age: <\/b> 24 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 2 Brokerage: <\/b> 16.88 ","Name: <\/b> Actor D Age: <\/b> 22 Gender: <\/b> Male Gang: <\/b> Gang Y Location: <\/b> Neighborhood 1 Brokerage: <\/b> 9.54 ","Name: <\/b> Actor E Age: <\/b> 22 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 11.48 ","Name: <\/b> Actor F Age: <\/b> 20 Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 1.7 ","Name: <\/b> Actor G Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0 ","Name: <\/b> Actor H Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0 ","Name: <\/b> Actor I Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 2 Brokerage: <\/b> 5.79 ","Name: <\/b> Actor J Age: <\/b> 25 Gender: <\/b> Male Gang: <\/b> Gang X Location: <\/b> Neighborhood 3 Brokerage: <\/b> 0 ","Name: <\/b> Actor K Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Gang Z Location: <\/b> Neighborhood 1 Brokerage: <\/b> 9.2 ","Name: <\/b> Actor L Age: <\/b> NA Gender: <\/b> Female Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 1.07 ","Name: <\/b> Actor M Age: <\/b> NA Gender: <\/b> Male Gang: <\/b> Unknown Location: <\/b> Neighborhood 1 Brokerage: <\/b> 0 ","Name: <\/b> Actor N Age: <\/b> 19 Gender: <\/b> Male Gang: <\/b> Gang Y Location: <\/b> Neighborhood 2 Brokerage: <\/b> 0.53 "],"label":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"]},"edges":{"from":["Actor D","Actor B","Actor C","Actor D","Actor D","Actor A","Actor A","Actor A","Actor B","Actor B","Actor C","Actor E","Actor E","Actor F","Actor F","Actor I","Actor F","Actor A","Actor A","Actor C","Actor C","Actor F","Actor C","Actor A","Actor A","Actor B","Actor B","Actor E"],"to":["Actor N","Actor G","Actor J","Actor K","Actor L","Actor H","Actor I","Actor D","Actor C","Actor L","Actor I","Actor L","Actor M","Actor L","Actor N","Actor G","Actor H","Actor F","Actor G","Actor F","Actor G","Actor G","Actor H","Actor E","Actor C","Actor F","Actor J","Actor K"],"relationship":["Co-Membership","Communication","Communication","Communication","Communication","Criminal","Criminal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Close Personal","Multiple","Multiple","Multiple","Multiple","Multiple"],"color":["grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey","grey"]},"nodesToDataframe":true,"edgesToDataframe":true,"options":{"width":"100%","height":"100%","nodes":{"shape":"dot"},"manipulation":{"enabled":false},"edges":{"smooth":false},"physics":{"solver":"forceAtlas2Based","stabilization":false,"enabled":true},"interaction":{"hover":true,"dragNodes":true,"dragView":true,"keyboard":true,"navigationButtons":true,"zoomView":true}},"groups":null,"width":"100%","height":null,"idselection":{"enabled":false,"style":"width: 150px; height: 26px","useLabels":true,"main":"Select by id"},"byselection":{"enabled":true,"style":"width: 150px; height: 26px","multiple":false,"hideColor":"rgba(200,200,200,0.5)","variable":"id","main":"Select by id","values":["Actor A","Actor B","Actor C","Actor D","Actor E","Actor F","Actor G","Actor H","Actor I","Actor J","Actor K","Actor L","Actor M","Actor N"]},"main":{"text":"Example Social Network (By Neighborhood)","style":"font-family:Georgia, Times New Roman, Times, serif;font-weight:bold;font-size:20px;text-align:center;"},"submain":null,"footer":{"text":"Size = Brokerage","style":"font-family:Georgia, Times New Roman, Times, serif;font-size:12px;text-align:center;"},"background":"rgba(0, 0, 0, 0)","highlight":{"enabled":true,"hoverNearest":true,"degree":2,"algorithm":"all","hideColor":"rgba(200,200,200,0.5)","labelOnly":true},"collapse":{"enabled":false,"fit":false,"resetHighlight":true,"clusterOptions":null,"keepCoord":true,"labelSuffix":"(cluster)"},"tooltipStay":300,"tooltipStyle":"position: fixed;visibility:hidden;padding: 5px;white-space: nowrap;font-family: verdana;font-size:14px;font-color:#000000;background-color: #f5f4ed;-moz-border-radius: 3px;-webkit-border-radius: 3px;border-radius: 3px;border: 1px solid #808074;box-shadow: 3px 3px 10px rgba(0, 0, 0, 0.2);"},"evals":[],"jsHooks":[]}</script>

---

# Common Misconceptions

* Several misconceptions exist, but two appear to be the most prevalent.

* SNA vs. Link Analysis

* SNA vs. Social Media Analysis

---

# Approach

* Network Topography

* Cohesive Subgroups

* Centrality

* Brokers and Bridges

* Roles and Positions

--
* Confirmatory SNA
  * Conditional Uniform Graph (CUG) Test
  * Quadratic Assignment Procedue (QAP) Test
  * Exponential Random Graph Models (ERGMs)
  * Stochastic Actor Oriented Models (SAOMs)

---

# Centrality

|**Measure** | **Definition** | **Interpretation** | **Caveat** |
|-----------|-------------------| -------------------------|-----------------------|
|**Degree** (frequency)| Count of an actor's ties. | Actor activity; Direct power or influence, or ability to be influenced by others | In some cases, well-connected actors are the result of biased connections. |
|**Eigenvector** (frequency) | Weights an actor's degree centrality by the degree centrality of its neighbors. | Indirect influence or power; Potential social capital. | In well-connected networks, it is often difficult to identify a single, or a few, potentially powerful actors. |
|**Betweenness** (paths) | How often each actor lies on the shortest path between all pairs of actors. | Brokerage potential; Gatekeepers; Boundary Spanners | Betweenness assumes a desire for efficiency. Actors, resources, and information may not always follow shortest paths. |
|**Closeness** (distance) | The average shortest path (i.e., geodesic) distance from an actor to every other actor in the network. | Actor levels of accessibility to others, and to material and non- material goods. | Not designed for use with disconnected networks.

---

# Hypothetical Network (Offline)

<div id="htmlwidget-67bbbc05fee3d92c15d6" style="width:100%;height:504px;" class="visNetwork html-widget"></div>
<script type="application/json" data-for="htmlwidget-67bbbc05fee3d92c15d6">{"x":{"nodes":{"id":["4 Stroke","Adonis","All City","Animal","Ant","Baby Face","Bananas","Bat G.","Big G.","Blaze","Blood Messiah","Bloodhound","Blue Eyes","Book Collector","Boots","Bow Wow","Boxcar","Brains","Bugs","Clown","Cranky","Crusier","Dapper Don","Droopy","Enforcer","Fast Trigger","Fat Boy","Freckles","Frosty","Ghost","Goldie","Gremlin","Ha-Ha","Icepick","Jelly","Little Red","O.G.","Pookey","Repo Girl","Scratch","Shadow","Slingshot","Smiley","Smoke","Snake","Sonny Black","The Barber","The Dentist"],"type":["Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person","Person"],"crime_type":["","Motor Vehicle Theft","","Fraud Offense","Prostitution Offenses","","","Motor Vehicle Theft","","","","Counterfeiting/Forgery","Prostitution Offenses","","","","Motor Vehicle Theft","","","","Fraud Offense","Fraud Offense","","Stolen Property Offenses","Fraud Offense","Prostitution Offenses","Burglary/Breaking & Entering","","Motor Vehicle Theft","Motor Vehicle Theft","Motor Vehicle Theft","Burglary/Breaking & Entering","Fraud Offense","","Weapon Law Violations","Motor Vehicle Theft","Drug/Narcotic Offenses","Weapon Law Violations","","","Prostitution Offenses","Robbery","","","Robbery","","Prostitution Offenses",""],"org":["Unknown","Unknown","County Boys/Blood Army","Unknown","Unknown","Blood Army","Blood Army","County Boys","County Boys","County Boys","County Boys","County Boys","Blood Army","Blood Army","Unknown","Unknown","Unknown","County Boys/Blood Army","Almighty Angels","County Boys","Almighty Angels","Unknown","21st Street","County Boys/21st Street","21st Street","County Boys","Almighty Angels","Unknown","Unknown","Unknown","County Boys/Blood Army","Unknown","Guerrilla Posse","Unknown","Guerrilla Posse","Unknown","County Boys","Unknown","Unknown","Blood Army","Blood Army","Blood Army","County Boys/Blood Army","Blood Army","Blood Army","Almighty Angels","Unknown","Blood Army"],"eigenvector":[0.178299184,0.027669186,0,0.150513634,0.124847241,0.036062144,0.307594841,0.249668561,0.070972237,0.070972237,0.007953291,0.404034574,0.184073908,0.110672499,0.618595132,0.266060515,0.010989281,0.183619766,0.02037192,0.003991088,0.23312668,0.340352395,0.071760807,0.110672499,0.143521615,0.155388015,0.702420795,0.648406857,0.305526148,0.010989281,0.429694852,0.183619766,0.303506449,0.559839573,0.010989281,0.06403913,1,0.316455805,0.559839573,0.007087371,0.071863301,0.338349046,0.138303943,0.110672499,0.267779945,0.059271752,0.155388015,0.321854489],"title":["Name: <\/b> 4 Stroke Crime: <\/b> Affiliation: <\/b> Unknown ","Name: <\/b> Adonis Crime: <\/b> Motor Vehicle Theft Affiliation: <\/b> Unknown ","Name: <\/b> All City Crime: <\/b> Affiliation: <\/b> County Boys/Blood Army ","Name: <\/b> Animal Crime: <\/b> Fraud Offense Affiliation: <\/b> Unknown ","Name: <\/b> Ant Crime: <\/b> Prostitution Offenses Affiliation: <\/b> Unknown ","Name: <\/b> Baby Face Crime: <\/b> Affiliation: <\/b> Blood Army ","Name: <\/b> Bananas Crime: <\/b> Affiliation: <\/b> Blood Army ","Name: <\/b> Bat G. Crime: <\/b> Motor Vehicle Theft Affiliation: <\/b> County Boys ","Name: <\/b> Big G. Crime: <\/b> Affiliation: <\/b> County Boys ","Name: <\/b> Blaze Crime: <\/b> Affiliation: <\/b> County Boys ","Name: <\/b> Blood Messiah Crime: <\/b> Affiliation: <\/b> County Boys ","Name: <\/b> Bloodhound Crime: <\/b> Counterfeiting/Forgery Affiliation: <\/b> County Boys ","Name: <\/b> Blue Eyes Crime: <\/b> Prostitution Offenses Affiliation: <\/b> Blood Army ","Name: <\/b> Book Collector Crime: <\/b> Affiliation: <\/b> Blood Army ","Name: <\/b> Boots Crime: <\/b> Affiliation: <\/b> Unknown ","Name: <\/b> Bow Wow Crime: <\/b> Affiliation: <\/b> Unknown ","Name: <\/b> Boxcar Crime: <\/b> Motor Vehicle Theft Affiliation: <\/b> Unknown ","Name: <\/b> Brains Crime: <\/b> Affiliation: <\/b> County Boys/Blood Army ","Name: <\/b> Bugs Crime: <\/b> Affiliation: <\/b> Almighty Angels ","Name: <\/b> Clown Crime: <\/b> Affiliation: <\/b> County Boys ","Name: <\/b> Cranky Crime: <\/b> Fraud Offense Affiliation: <\/b> Almighty Angels ","Name: <\/b> Crusier Crime: <\/b> Fraud Offense Affiliation: <\/b> Unknown ","Name: <\/b> Dapper Don Crime: <\/b> Affiliation: <\/b> 21st Street ","Name: <\/b> Droopy Crime: <\/b> Stolen Property Offenses Affiliation: <\/b> County Boys/21st Street ","Name: <\/b> Enforcer Crime: <\/b> Fraud Offense Affiliation: <\/b> 21st Street ","Name: <\/b> Fast Trigger Crime: <\/b> Prostitution Offenses Affiliation: <\/b> County Boys ","Name: <\/b> Fat Boy Crime: <\/b> Burglary/Breaking & Entering Affiliation: <\/b> Almighty Angels ","Name: <\/b> Freckles Crime: <\/b> Affiliation: <\/b> Unknown ","Name: <\/b> Frosty Crime: <\/b> Motor Vehicle Theft Affiliation: <\/b> Unknown ","Name: <\/b> Ghost Crime: <\/b> Motor Vehicle Theft Affiliation: <\/b> Unknown ","Name: <\/b> Goldie Crime: <\/b> Motor Vehicle Theft Affiliation: <\/b> County Boys/Blood Army ","Name: <\/b> Gremlin Crime: <\/b> Burglary/Breaking & Entering Affiliation: <\/b> Unknown ","Name: <\/b> Ha-Ha Crime: <\/b> Fraud Offense Affiliation: <\/b> Guerrilla Posse ","Name: <\/b> Icepick Crime: <\/b> Affiliation: <\/b> Unknown ","Name: <\/b> Jelly Crime: <\/b> Weapon Law Violations Affiliation: <\/b> Guerrilla Posse ","Name: <\/b> Little Red Crime: <\/b> Motor Vehicle Theft Affiliation: <\/b> Unknown ","Name: <\/b> O.G. Crime: <\/b> Drug/Narcotic Offenses Affiliation: <\/b> County Boys ","Name: <\/b> Pookey Crime: <\/b> Weapon Law Violations Affiliation: <\/b> Unknown ","Name: <\/b> Repo Girl Crime: <\/b> Affiliation: <\/b> Unknown ","Name: <\/b> Scratch Crime: <\/b> Affiliation: <\/b> Blood Army ","Name: <\/b> Shadow Crime: <\/b> Prostitution Offenses Affiliation: <\/b> Blood Army ","Name: <\/b> Slingshot Crime: <\/b> Robbery Affiliation: <\/b> Blood Army ","Name: <\/b> Smiley Crime: <\/b> Affiliation: <\/b> County Boys/Blood Army ","Name: <\/b> Smoke Crime: <\/b> Affiliation: <\/b> Blood Army ","Name: <\/b> Snake Crime: <\/b> Robbery Affiliation: <\/b> Blood Army ","Name: <\/b> Sonny Black Crime: <\/b> Affiliation: <\/b> Almighty Angels ","Name: <\/b> The Barber Crime: <\/b> Prostitution Offenses Affiliation: <\/b> Unknown ","Name: <\/b> The Dentist Crime: <\/b> Affiliation: <\/b> Blood Army "],"color":["#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4","#beaed4"],"label":["4 Stroke","Adonis","All City","Animal","Ant","Baby Face","Bananas","Bat G.","Big G.","Blaze","Blood Messiah","Bloodhound","Blue Eyes","Book Collector","Boots","Bow Wow","Boxcar","Brains","Bugs","Clown","Cranky","Crusier","Dapper Don","Droopy","Enforcer","Fast Trigger","Fat Boy","Freckles","Frosty","Ghost","Goldie","Gremlin","Ha-Ha","Icepick","Jelly","Little Red","O.G.","Pookey","Repo Girl","Scratch","Shadow","Slingshot","Smiley","Smoke","Snake","Sonny Black","The Barber","The Dentist"]},"edges":{"from":["Adonis","Adonis","Adonis","Bananas","Bananas","Bananas","Bananas","Bat G.","Bat G.","Big G.","Boots","Boots","Boots","Boots","Boxcar","Boxcar","Brains","Brains","Fat Boy","Fat Boy","Fat Boy","Slingshot","Freckles","Freckles","Ghost","Goldie","Goldie","Pookey","Icepick","Snake","Animal","Animal","Animal","Ant","Bugs","Bloodhound","Bloodhound","Cranky","Enforcer","Fat Boy","Fat Boy","Slingshot","O.G.","O.G.","O.G.","Droopy","Adonis","4 Stroke","Adonis","Adonis","Adonis","Bananas","Bananas","Bananas","Bananas","The Barber","Bat G.","Bat G.","Big G.","Boots","Boots","Boots","Boots","Bloodhound","Bloodhound","Bloodhound","Bow Wow","Boxcar","Boxcar","Brains","Brains","Cranky","The Dentist","Fat Boy","Fat Boy","Fat Boy","Slingshot","Freckles","Freckles","Frosty","Ghost","Goldie","Goldie","Pookey","O.G.","Icepick","Snake","4 Stroke","4 Stroke","Blood Messiah","Animal","Animal","Animal","Ant","Ant","Baby Face","Baby Face","Bananas","The Barber","Bat G.","Bat G.","Bat G.","Bat G.","Book Collector","Boots","Bloodhound","Bloodhound","Bloodhound","Bloodhound","Blue Eyes","Bow Wow","Dapper Don","The Dentist","The Dentist","Enforcer","Fast Trigger","Slingshot","Frosty","Goldie","O.G.","O.G.","O.G.","O.G.","Scratch","Shadow"],"to":["Boxcar","Ghost","Jelly","Blue Eyes","Brains","Slingshot","Gremlin","Big G.","Blaze","Blaze","Fat Boy","Freckles","Icepick","Repo Girl","Ghost","Jelly","Slingshot","Gremlin","Freckles","Icepick","Repo Girl","Gremlin","Icepick","Repo Girl","Jelly","Pookey","O.G.","O.G.","Repo Girl","Sonny Black","Shadow","Snake","Crusier","Little Red","Blue Eyes","Cranky","Ha-Ha","O.G.","Freckles","O.G.","Crusier","Ha-Ha","Ha-Ha","Snake","Crusier","O.G.","Blue Eyes","Frosty","Boxcar","Ghost","Jelly","Blue Eyes","Brains","Slingshot","Gremlin","O.G.","Big G.","Blaze","Blaze","Fat Boy","Freckles","Icepick","Repo Girl","Bow Wow","The Dentist","Slingshot","O.G.","Ghost","Jelly","Slingshot","Gremlin","Fat Boy","O.G.","Freckles","Icepick","Repo Girl","Gremlin","Icepick","Repo Girl","O.G.","Jelly","Pookey","O.G.","O.G.","Ha-Ha","Repo Girl","Sonny Black","Frosty","O.G.","Shadow","Shadow","Snake","Crusier","O.G.","Little Red","Clown","The Dentist","O.G.","Bloodhound","Bloodhound","Goldie","O.G.","Smiley","O.G.","Freckles","The Dentist","Fast Trigger","Frosty","O.G.","O.G.","O.G.","Freckles","O.G.","Little Red","Freckles","O.G.","O.G.","O.G.","O.G.","Smiley","Smoke","Snake","Crusier","Little Red","Crusier"],"relationship":["Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Familial","Financial","Financial","Financial","Financial","Financial","Financial","Financial","Financial","Financial","Financial","Financial","Financial","Financial","Financial","Financial","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Friendship","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate","Superior-Subordinate"],"color":["lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey","lightgrey"]},"nodesToDataframe":true,"edgesToDataframe":true,"options":{"width":"100%","height":"100%","nodes":{"shape":"dot"},"manipulation":{"enabled":false},"edges":{"width":5,"smooth":false},"physics":{"solver":"repulsion","stabilization":false,"enabled":true},"interaction":{"hover":true,"dragNodes":true,"dragView":true,"keyboard":true,"navigationButtons":true,"zoomView":true}},"groups":null,"width":"100%","height":null,"idselection":{"enabled":false,"style":"width: 150px; height: 26px","useLabels":true,"main":"Select by id"},"byselection":{"enabled":true,"style":"width: 150px; height: 26px","multiple":false,"hideColor":"rgba(200,200,200,0.5)","variable":"id","main":"Select by id","values":["4 Stroke","Adonis","All City","Animal","Ant","Baby Face","Bananas","Bat G.","Big G.","Blaze","Blood Messiah","Bloodhound","Blue Eyes","Book Collector","Boots","Bow Wow","Boxcar","Brains","Bugs","Clown","Cranky","Crusier","Dapper Don","Droopy","Enforcer","Fast Trigger","Fat Boy","Freckles","Frosty","Ghost","Goldie","Gremlin","Ha-Ha","Icepick","Jelly","Little Red","O.G.","Pookey","Repo Girl","Scratch","Shadow","Slingshot","Smiley","Smoke","Snake","Sonny Black","The Barber","The Dentist"]},"main":{"text":"Gang Network","style":"font-family:Georgia, Times New Roman, Times, serif;font-weight:bold;font-size:20px;text-align:center;"},"submain":null,"footer":{"text":"Nodes = Individuals; Tie = One of Five Close Relationships","style":"font-family:Georgia, Times New Roman, Times, serif;font-size:12px;text-align:center;"},"background":"rgba(0, 0, 0, 0)","highlight":{"enabled":true,"hoverNearest":true,"degree":1,"algorithm":"all","hideColor":"rgba(200,200,200,0.5)","labelOnly":true},"collapse":{"enabled":false,"fit":false,"resetHighlight":true,"clusterOptions":null,"keepCoord":true,"labelSuffix":"(cluster)"},"tooltipStay":300,"tooltipStyle":"position: fixed;visibility:hidden;padding: 5px;white-space: nowrap;font-family: verdana;font-size:14px;font-color:#000000;background-color: #f5f4ed;-moz-border-radius: 3px;-webkit-border-radius: 3px;border-radius: 3px;border: 1px solid #808074;box-shadow: 3px 3px 10px rgba(0, 0, 0, 0.2);"},"evals":[],"jsHooks":[]}</script>

---

# Hypothetical Network (Offline)

<div id="htmlwidget-8d9ab817167db9db9794" style="width:100%;height:auto;" class="datatables html-widget"></div>
<script type="application/json" data-for="htmlwidget-8d9ab817167db9db9794">{"x":{"filter":"none","data":[["Adonis","Boxcar","Ghost","Jelly","Bananas","Blue Eyes","Brains","Slingshot","Gremlin","Bat G.","Big G.","Blaze","Boots","Fat Boy","Freckles","Icepick","Repo Girl","Goldie","Pookey","O.G.","Snake","Sonny Black","Animal","Shadow","Crusier","Ant","Little Red","Bugs","Bloodhound","Cranky","Ha-Ha","Enforcer","Droopy","4 Stroke","Frosty","The Barber","Bow Wow","The Dentist","Blood Messiah","Baby Face","Clown","Smiley","Book Collector","Fast Trigger","Dapper Don","Smoke","Scratch"],[7,6,6,6,9,5,6,9,6,8,4,4,9,11,12,8,8,6,4,32,6,2,6,4,6,3,4,1,11,3,4,2,1,3,5,2,3,6,1,2,1,2,1,2,1,1,1],[0.03,0.01,0.01,0.01,0.31,0.18,0.18,0.34,0.18,0.25,0.07,0.07,0.62,0.7,0.65,0.56,0.56,0.43,0.32,1,0.27,0.06,0.15,0.07,0.34,0.12,0.06,0.02,0.4,0.23,0.3,0.14,0.11,0.18,0.31,0.16,0.27,0.32,0.01,0.04,0,0.14,0.11,0.16,0.07,0.11,0.01],[129,0,0,0,48,209,0,43.97,0,89,0,0,0,241.2,89,0,0,1.5,0,824.43,61.9,0,5,45,106.1,36.67,46.5,0,43.23,3.5,0,0,0,0,0.67,0,0,133.33,0,45,0,0,0,0,0,0,0]],"container":"<table class=\"display\">\n <thead>\n <tr>\n <th>name<\/th>\n <th>degree<\/th>\n <th>eigenvector<\/th>\n <th>betweenness<\/th>\n <\/tr>\n <\/thead>\n<\/table>","options":{"pageLength":10,"dom":"tp","columnDefs":[{"className":"dt-right","targets":[1,2,3]}],"order":[],"autoWidth":false,"orderClasses":false}},"evals":[],"jsHooks":[]}</script>

---

# Attribute Table (Gang Network Top-5 Eigenvector)

|**Rank**  | **Name**  | **Affiliation**  | **Other Gang Connections**  | **Crime Type**
|---------|-------------| ----------------|--------------|------------|
|1| O.G. (1)| County Boys | Almighty Angels,Blood Army, Guerrilla Posse, & 21st St.   | Narcotic Offenses |
|2| Fat Boy (.07) | Almighty Angels | County Boys | Burglary |
|3| Freckles (.65)| Unknown | Almighty Angels & 21st St. | None |
|4|  Boots (.62) | Unknown | Almighty Angels |None |
|5|  2 Tied at .56 |  N/A | N/A | N/A |

---

# Questions?

.center[
![](corelogo5.png)]

Dan Cunningham - dtcunnin@nps.edu
